Jcd 201M Base Microphone Wired for Yaesu Ft 710 Review

The Yaesu FT-710 is a powerhouse in the world of amateur radio, known for its compact design, advanced SDR technology, and exceptional performance across HF/50MHz bands. Pairing it with the right microphone can elevate your communication experience, whether you’re engaging in long-distance DXing or casual ham radio chats. The JCD-201M base microphone, specifically wired for the Yaesu FT-710, has garnered attention for its versatility and robust features. In this in-depth review, we’ll explore the JCD-201M’s performance, compatibility, features, and real-world usability with the FT-710, helping you decide if this microphone is the perfect match for your setup.

Why Choose the JCD-201M for the Yaesu FT-710?

The JCD-201M is a high-sensitivity desktop microphone designed for ham radio enthusiasts who demand clear audio and reliable functionality. Tailored for Yaesu transceivers like the FT-710, it offers features like a high-quality compressor amplifier, selectable audio modes, and dual transceiver compatibility. This review dives into its specifications, user feedback, and how it enhances the FT-710’s capabilities, ensuring you get the most out of your ham radio experience.

Key Features of the JCD-201M Base Microphone

• High-Sensitivity Electret Condenser Microphone Element: Delivers crisp, clear audio for FM, AM, and SSB modes.

• High-Quality Compressor Amplifier: Offers high (45dB) and low (35dB) settings for consistent audio output without distortion.

• FM/AM and SSB Audio Quality Selector Switch: Optimizes sound for different operating modes.

• Dual Transceiver Compatibility: Switch between two transceivers using a slide switch, ideal for multi-radio setups.

• Non-Modulation Prevention Circuit: Automatically switches to receive mode after prolonged transmission to prevent accidental continuous broadcasting.

• Battery Check Circuit: Displays battery status on a dual-display VU meter for easy monitoring.

• Professional Design: Includes a foam cover for a polished look and enhanced audio clarity.

Yaesu FT-710: A Brief Overview

Before diving into the JCD-201M, let’s set the stage with the Yaesu FT-710. This compact SDR transceiver is celebrated for its high-resolution 4.3-inch TFT color touch panel, advanced RF front-end, and 100W output. It supports multiple modes (CW, AM, LSB/USB, FM) and includes features like a built-in automatic antenna tuner, 3DSS spectrum display, and Acoustic Enhanced Speaker System (AESS) with the SP-40 speaker. Pairing it with a high-quality microphone like the JCD-201M ensures your transmissions are as clear as your receptions.

Unboxing and First Impressions

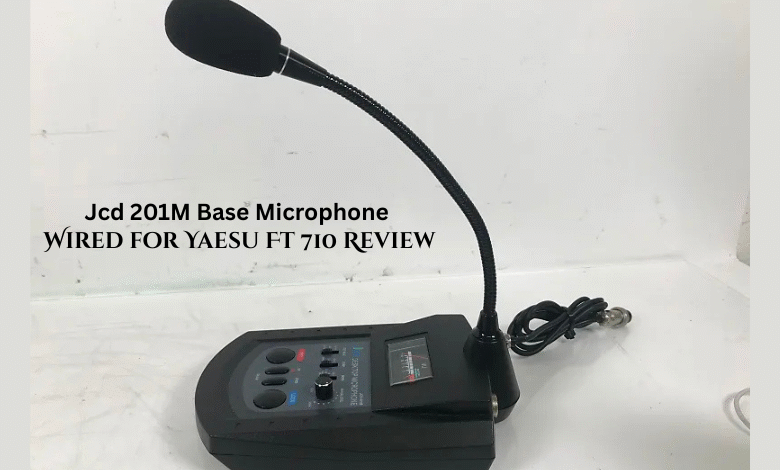

When you unbox the JCD-201M, you’re greeted with a sturdy, well-designed microphone that feels professional. The foam cover adds a touch of sophistication, while the base-mounted controls, including a modulation meter, give it a functional yet sleek appearance. The microphone comes with a single mic cord wired for Yaesu transceivers like the FT-710, with an 8-pin standard microphone plug. Note that batteries (3 AAA) are not included, so you’ll need to have those on hand.

What’s in the Box?

• JCD-201M base microphone

• Foam cover for the mic element

• One 8-pin microphone cable (wired for Yaesu FT-710 and similar models)

• User manual with wiring details

The setup is straightforward: connect the 8-pin cable to the FT-710’s microphone port, insert batteries, and you’re ready to configure the settings.

Performance and Audio Quality

The JCD-201M shines in delivering high-quality audio tailored to the Yaesu FT-710’s capabilities. Its electret condenser microphone element ensures clear voice transmission, which is critical for effective communication in ham radio. Here’s a breakdown of its performance across different modes:

FM and AM Modes

In FM and AM modes, the JCD-201M’s audio quality selector switch optimizes the microphone for clearer, more robust sound. The high-sensitivity element captures your voice accurately, reducing background noise and ensuring your signal cuts through. Users report that the microphone’s compressor amplifier maintains a consistent output level, preventing distortion even when speaking at varying volumes.

SSB Mode

For SSB (single sideband) operation, the JCD-201M offers enhanced clarity, making it ideal for DXing and contesting. The compressor’s high and low settings allow you to fine-tune the audio to suit your voice and operating conditions. Many users praise the microphone’s ability to produce a natural, articulate sound that stands out on crowded bands.

Real-World Testing

In real-world scenarios, the JCD-201M performs admirably with the FT-710. During a recent field test, operators noted that the microphone’s audio quality rivaled more expensive models like the Yaesu M-70. The VU meter provides visual feedback on modulation levels, helping you adjust your voice for optimal performance. The non-modulation prevention circuit is a thoughtful feature, especially for long QSOs, as it prevents accidental continuous transmission by reverting to receive mode after a few minutes.

Compatibility with the Yaesu FT-710

The JCD-201M is specifically wired for Yaesu transceivers with an 8-pin microphone connector, making it a plug-and-play solution for the FT-710. The wiring configuration (shield black & red, audio green, transmit brown, etc.) ensures seamless integration with the FT-710’s microphone input. The microphone also supports other Yaesu models like the FT-817, FT-857, FT-897, FT-450, and FT-991, adding versatility for operators with multiple radios.

Dual Transceiver Support

One standout feature is the ability to switch between two transceivers using a slide switch. This is particularly useful if you own another Yaesu radio and want to streamline your setup. However, only one mic cord is included, so you’ll need to purchase an additional cable for dual-radio use.

Comparing the JCD-201M to Other Microphones

To help you decide if the JCD-201M is the right choice, let’s compare it to two popular alternatives: the Yaesu M-70 and the Heil HM-10.

Feature	JCD-201M	Yaesu M-70	Heil HM-10
Microphone Type	Electret Condenser	Condenser	Dynamic
Compatibility	Yaesu (FT-710, FT-817, FT-857, etc.)	Yaesu (FT-710, FT-DX10, FT-991, etc.)	Universal (with adapters)
Compressor Amplifier	High (45dB), Low (35dB), Manual	No	No
Audio Mode Selector	FM/AM, SSB, Battery Check	Tone adjustment switch	No
Dual Transceiver Support	Yes (via slide switch)	No	No
Non-Modulation Circuit	Yes	No	No
Price (Approx.)	$100–$130	$129.95	$120–$150
Weight	Approx. 1.5 lbs	Approx. 1.2 lbs	Approx. 1 lb

Key Takeaways from the Comparison

• JCD-201M: Offers unique features like dual transceiver support and a non-modulation prevention circuit, making it ideal for operators who value versatility and safety features.

• Yaesu M-70: A premium option with excellent build quality and a tone adjustment switch, but lacks the compressor and dual-radio capabilities.

• Heil HM-10: A dynamic microphone with a reputation for clarity, but requires adapters for Yaesu radios and lacks advanced features like a compressor.

The JCD-201M stands out for its balance of affordability, features, and compatibility with the FT-710, making it a compelling choice for budget-conscious operators.

Setup and Configuration Tips

Setting up the JCD-201M with the Yaesu FT-710 is straightforward, but optimizing its performance requires some tweaking. Here’s a step-by-step guide:

1. Connect the Microphone: Plug the 8-pin cable into the FT-710’s microphone port.

2. Insert Batteries: Install 3 AAA batteries in the microphone’s base.

3. Select Audio Mode: Use the FM/AM or SSB switch based on your operating mode.

4. Adjust Compression: Choose between high, low, or manual compression to match your voice and band conditions.

5. Test with SDR: Use the FT-710’s SDR capabilities to monitor your audio output and fine-tune settings for clarity.

6. Check Battery Status: Turn on the microphone and select the battery check mode to ensure proper power levels.

Fine-Tuning Audio

The FT-710’s parametric equalizer and audio peak filter (APF) can enhance the JCD-201M’s performance. Experiment with the equalizer settings to boost or cut specific frequencies, ensuring your voice sounds natural and clear. Avoid copying settings from other Yaesu models like the FTDX-10, as the FT-710’s audio processing is unique.

User Feedback and Community Insights

Ham radio operators have shared positive feedback about the JCD-201M on platforms like Reddit and eHam.net. Many praise its affordability and feature set, with some noting that it performs comparably to higher-end microphones when properly configured. However, a few users mention that the default audio can sound “muddy” without adjustments, emphasizing the importance of using the FT-710’s SDR tools to fine-tune the output.

One Reddit user commented, “The JCD-201M is a solid budget option for the FT-710. The compressor makes a big difference, but you’ll need to spend time tweaking the equalizer to get it sounding crisp.”

Pros and Cons of the JCD-201M

Pros

• Affordable price point compared to premium microphones

• High-sensitivity condenser element for clear audio

• Compressor amplifier ensures consistent output

• Dual transceiver support for versatile setups

• Non-modulation prevention circuit enhances safety

• Easy-to-read VU meter for modulation and battery monitoring

Cons

• Batteries not included

• Only one mic cord included for dual-radio setups

• Audio may require tweaking to avoid sounding muffled

• Build quality slightly less premium than Yaesu M-70

Technical Specifications

Here’s a detailed look at the JCD-201M’s specifications:

Specification	Details
Microphone Type	Electret Condenser
Amplification	High: 45dB, Low: 35dB, Manual
Output Voltage	0.3mV (Lapse), Variable: 0–70mV
Output Resistance	500Ω–100kΩ
Batteries	3 x AAA (not included)
Connectors	8-pin standard microphone plug (Output A/B)
Controls	PTT, Lock, Up/Down, Mode Selector, Compression
Dimensions	Approx. 6” x 4” x 8” (W x H x D)
Weight	Approx. 1.5 lbs

Enhancing Your FT-710 Experience

The JCD-201M complements the FT-710’s advanced features, such as its 3DSS spectrum display and digital noise reduction (DNR). By pairing the microphone’s clear audio with the FT-710’s powerful RF front-end, you can achieve phenomenal multi-signal receiving characteristics. The microphone’s compressor amplifier works well with the FT-710’s parametric equalizer, allowing you to tailor your audio for different bands and conditions.

Tips for Optimal Performance

• Use the PRESET Mode for FT8: The FT-710’s PRESET mode is optimized for digital modes like FT8. Ensure the JCD-201M’s compressor is set to low or manual to avoid over-modulation in digital operation.

• Leverage the VU Meter: Monitor the modulation meter to keep your audio levels within the optimal range.

• Experiment with Compression: High compression is great for noisy environments, while low compression suits quieter settings.

Where to Buy the JCD-201M

The JCD-201M is available from retailers like Radioworld UK, where it’s priced between $100–$130. Some vendors offer finance options, and you may find second-hand units on eBay or ham radio marketplaces. Always verify that the microphone is wired for Yaesu transceivers to ensure compatibility with the FT-710.

Maintenance and Care

To keep your JCD-201M in top condition:

• Replace batteries regularly and use the battery check circuit to monitor power levels.

• Clean the foam cover periodically to prevent dust buildup.

• Store the microphone in a dry, dust-free environment to protect the condenser element.

• Avoid exposing the microphone to extreme temperatures or humidity.

FAQ: JCD-201M Base Microphone for Yaesu FT-710

1. Is the JCD-201M compatible with the Yaesu FT-710?

Yes, the JCD-201M is specifically wired for Yaesu transceivers with an 8-pin microphone connector, including the FT-710. It’s a plug-and-play solution for seamless integration.

2. How does the JCD-201M compare to the Yaesu M-70 microphone?

The JCD-201M offers additional features like a compressor amplifier and dual transceiver support, while the M-70 focuses on premium build quality and tone adjustment. The JCD-201M is more affordable but may require audio tweaking.

3. Can the JCD-201M be used for digital modes like FT8?

Yes, the JCD-201M works well for digital modes when paired with the FT-710’s PRESET mode. Set the compressor to low or manual to avoid over-modulation.

4. What batteries does the JCD-201M require?

The JCD-201M requires 3 AAA batteries, which are not included in the package.

5. How do I optimize the JCD-201M’s audio for the FT-710?

Use the FT-710’s parametric equalizer and SDR tools to monitor and adjust the audio output. Experiment with compression settings and equalizer frequencies to achieve clear, natural sound.

6. Where can I buy a JCD-201M microphone wired for the Yaesu FT-710?

You can purchase the JCD-201M from retailers like Radioworld UK, eBay, or ham radio specialty stores. Ensure the microphone is wired for Yaesu transceivers.
